The Warn R60-S Delivers Serious Pulling Power at a Price That Won’t Break the Bank

Tested: The Warn R60-S is a Potent, Compact, and Affordable Winch

Winches are incredibly versatile tools, and even an expensive one can be cheap insurance when you’re stuck miles from civilization. More importantly, when you need a vehicle recovery winch, it has to work.

Warn Industries pioneered the electric recovery winch in the late 1950s and remains one of the industry’s biggest names.

Recently, the Oregon-based company introduced the Warn R-Series, a more affordable family of powersports winches.

Available in 2,500-, 3,500-, 4,500-, and 6,000-lb. capacities, these standard-duty winches are designed to provide a lower-cost entry into Warn ownership without sacrificing reliability. I recently installed the Warn R60-S, the largest model in the lineup, on our Suzuki Jimny to see how it performed in the real world.

What Is the Warn R-Series Winch Lineup?

The Warn R-Series winch lineup represents the company’s most affordable entry into the powersports recovery market.

For years, Warn has offered its premium VRX and flagship AXON powersports winches. The new R-Series covers many of the same applications while lowering the price of entry. Like the VRX lineup, the R-Series is available in 2,500- through 4,500-lb. capacities.

However, Warn took things a step further by introducing the R60-S, a 6,000-lb. winch—the highest-capacity powersports winch the company has ever produced.

The R60-S is available only as a synthetic rope winch, while the smaller R-Series models can be ordered with either steel cable or synthetic rope.

The R-Series is manufactured in China to Warn’s specifications, while the VRX and AXON winches are assembled in Oregon.

Regardless of origin, every R-Series model is backed by a five-year mechanical warranty and a three-year electrical warranty.

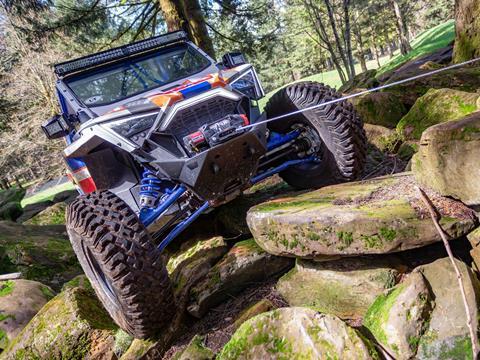

The Warn R60-S was designed primarily as a UTV winch for large, heavy side-by-sides, but it also works well as a winch for small trucks and lightweight SUVs. It uses a powersports mounting pattern measuring 3.0 x 6.59 inches.

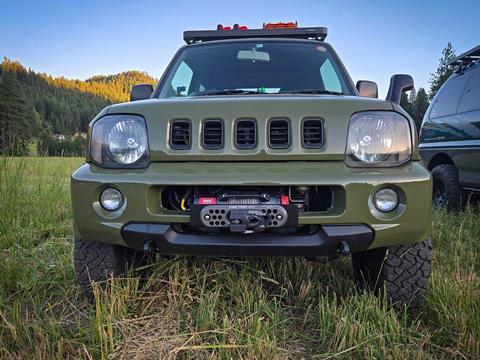

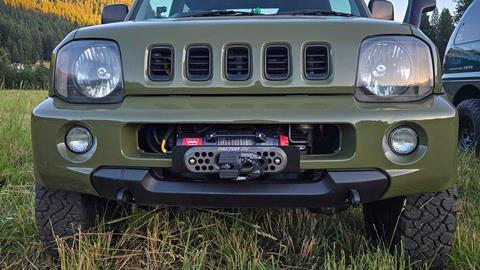

We installed ours on our JDM 1998 Suzuki Jimny Wide. Fortunately, its existing Jimny Bits winch plate was already drilled for both truck and larger powersports winches.

Warn R60-S Specs and What’s in the Box

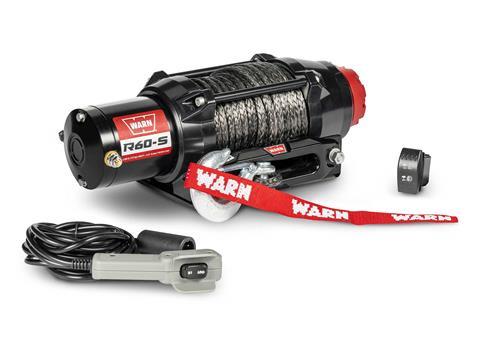

The Warn R60-S includes everything needed to complete the installation:

• 50 feet of ¼-inch synthetic rope
• Zinc-plated forged hook with safety clasp
• Black hawse fairlead
• Dash-mounted rocker switch
• Corded remote with a 12-foot lead
• Mounting hardware
• Complete wiring kit
• Separate contactor

The R60-S also features an automatic mechanical load-holding brake, an all-metal three-stage planetary gear train, a dial-style clutch knob, and a durable black finish with black tie rods. As an IP67 waterproof winch, it is designed to withstand water and dust encountered during off-road use.

Our Jimny’s winch mount already included a fairlead opening, but it was designed around a standard 10-inch truck fairlead rather than the narrower powersports version included with the Warn.

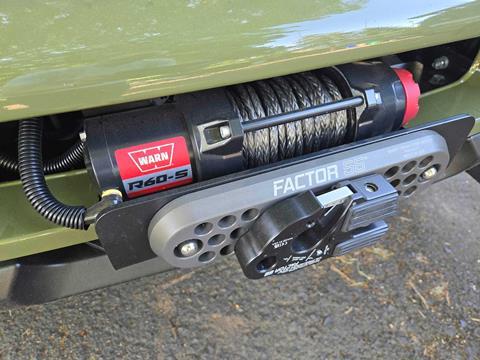

Instead, I installed a Factor 55 Short Drum Comp Fairlead, which matched the drum width perfectly. I also swapped the included hook for a Factor 55 UltraHook XTV.

Dimensionally, the R60-S measures 14.1 inches long, 4.7 inches high, and 4.6 inches deep.

Installing the Warn R60-S: What to Expect

The Warn R60-S installation includes everything needed to get the winch operational, including the contactor, wiring, and mounting hardware.

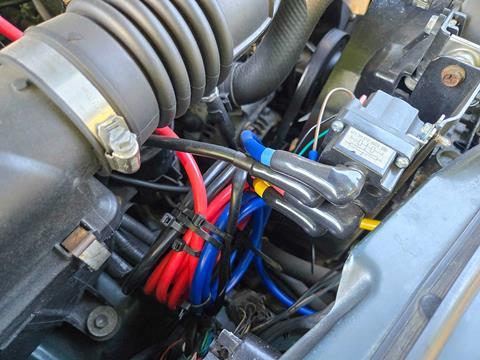

Because it’s a powersports-style winch, the contactor must be mounted separately. I found a suitable location near the radiator support.

The supplied wiring was considerably longer than I needed, so I coiled the excess neatly and secured it well away from heat, moving components, and sharp edges.

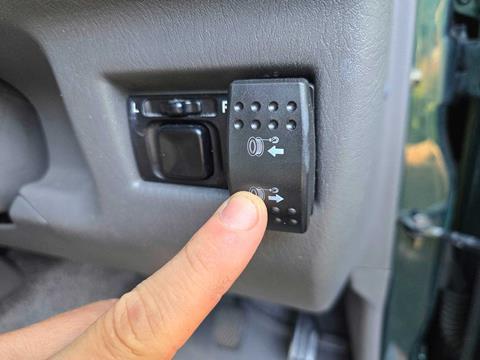

The dash-mounted rocker switch required routing wiring through the firewall before snapping into an unused knock-out panel.

The remote socket ultimately ended up on the engine side of the firewall, though I would have preferred a little more flexibility in its placement.

Afterward, I finished the installation with the Factor 55 fairlead and UltraHook XTV.

Overall, the Warn R60-S installation is straightforward for anyone with basic mechanical experience. The only aspect requiring a little extra planning is deciding where to mount the contactor and remote socket, particularly on smaller vehicles.

Warn R60-S Performance: How It Pulls in the Field

The Warn R60-S feels solid under load, and the overall fit and finish are impressive considering its price point.

While the components don’t quite match the refinement of Warn’s VRX or AXON products, you get an awful lot of winch for its $549.99 MSRP (with many retailers selling it closer to $500).

For comparison, the R60-S costs roughly half as much as an AXON 55-S while offering 1,000 pounds more rated pulling capacity. Naturally, you give up some premium features compared to the VRX—and especially the AXON—but that’s expected at this price.

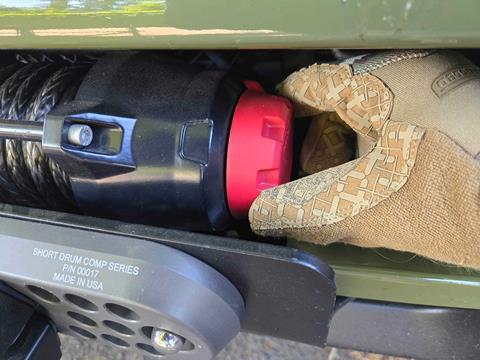

The red clutch dial rotates easily into free-spool mode, allowing the synthetic rope to pull out smoothly with very little effort.

Locking the drum again is equally simple, even while wearing gloves. The dial doesn’t have quite the same precision feel as the higher-end Warn models, but it functions exactly as it should.

The included dash-mounted rocker switch is a welcome feature for any 4x4, and the winch exhibits very little run-on when stopping under power. The corded remote is equally straightforward, with a generous 12-foot cable.

If installing the R60-S on a truck rather than a UTV, an included extension for relocating the remote socket closer to the front bumper would have been appreciated.

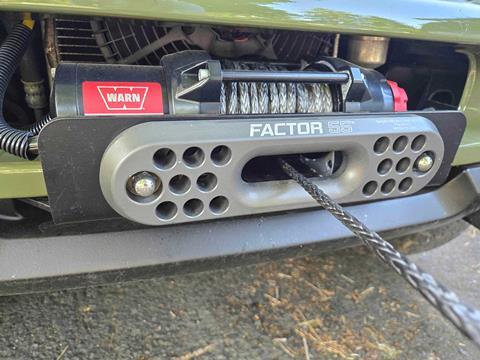

Once under load, the R60-S pulls confidently and consistently. Our Jimny weighs approximately 2,500 pounds, and the winch had no trouble dragging the vehicle—even while testing against a partially engaged parking brake.

Warn recommends sizing truck winches at roughly 1.5 times the vehicle’s GVWR. For our Jimny, that equates to slightly more than a 4,500-lb. winch, meaning the 6,000-lb. winch provides a healthy margin of extra pulling power.

Warn doesn’t publish a line speed for the R60-S. Frankly, for a winch in this class, I’d rather have dependable pulling power and long-term reliability than impressive retrieval speed, and the R60-S delivers exactly that.

While our Jimny is an unconventional test platform, vehicles like the Kawasaki Ridge Crew, Polaris Ranger, and Can-Am Defender occupy a similar weight class, making the R60-S an excellent UTV winch for larger side-by-sides as well.

Is the Warn R60-S Worth the Money?

Warn has rarely competed on price alone. Instead, the company has built its reputation on reliability, warranty support, and long-term serviceability.

While cheaper alternatives certainly exist, Warn’s U.S.-based customer service and readily available replacement parts give the R60-S a meaningful advantage over many no-name budget winches. That’s worth considering when buying a recovery product you may someday depend on far from pavement.

The new Warn R-Series delivers significantly more value than its price suggests. It may not offer every premium feature found on the VRX or AXON lines, but it still carries the same engineering philosophy behind the iconic red “W.”

Having owned several Warn winches over the years without issue, I expect the R-Series to continue that reputation.

Whether you’re outfitting a heavy UTV or looking for a winch for a small truck or lightweight SUV, the Warn R60-S delivers dependable vehicle recovery capability, 6,000 pounds of pulling power, and excellent value—all backed by the company that helped define the modern electric recovery winch.
