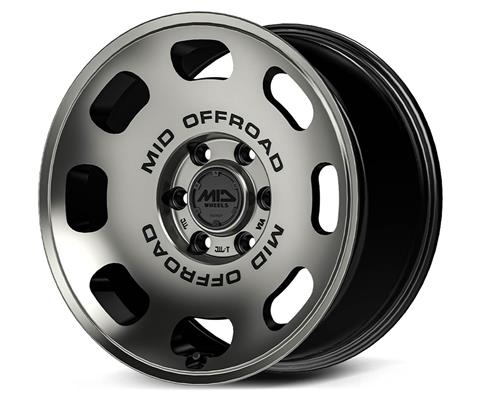

Japanese wheel manufacturer RAYS announces the MID D8, a cast one-piece monoblock wheel designed to match the volume and capability of modern 4×4 vehicles. With its reversely curved dish face, bold cast lettering, and emphasis on surface strength, the D8 delivers visual impact that exceeds its physical dimensions. Set for spring 2026 delivery in two color options.
Presence beyond its size.
The D8 is designed with a strong emphasis on surface strength.
Its reversely curved dish face creates visual depth, allowing the design to appear larger than its actual size while delivering toughness and presence. It provides a solid, commanding stance that stands up to the volume of 4×4 vehicles.
The center section features bold cast lettering as an eye-catching element, reinforcing the rugged character expected of an off-road wheel.
Colors are available in Barrel Black(BBK) and Black Clear/MC(BKM). Air valve and center cap is included.
This Cast One Piece Mono block wheel starts delivery from Spring 2026.
| SIZE | INSET | Hub Clearance (mm) |
HOLE | P.C.D. | HUB BORE (φ) |
DRILL (φ) |
COLOR | PRICE | LOAD (kg) |
LOAD (lbs) |
CODE |
| 18x9J | 0 | (60) | 6 | 139.7 | 106.1 | 32-15 | BBK | ¥75,500 | 955 | 2,105 | F78A8906D200BBKN |
| 18x9J | 0 | (60) | 6 | 139.7 | 106.1 | 32-15 | GSM | ¥78,000 | 955 | 2,105 | F78A8906D200GSMN |
| 18x9J | 20 | (40) | 6 | 139.7 | 106.1 | 32-15 | BBK | ¥75,500 | 955 | 2,105 | F78A8906D320BBKN |
| 18x9J | 20 | (40) | 6 | 139.7 | 106.1 | 32-15 | GSM | ¥78,000 | 955 | 2,105 | F78A8906D320GSMN |
For more information, check our official website: https://www.rayswheels.co.jp/en/, complete MID line-up can also be viewed here: https://www.mid-wheels.com/en/
