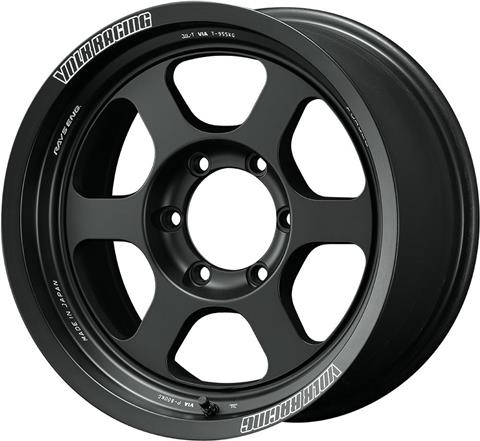

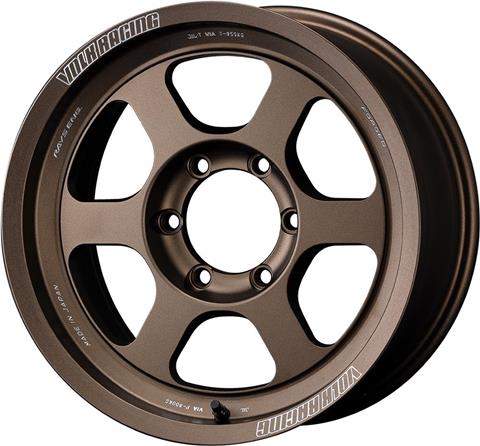

The legendary VOLK RACING TE37XT M-SPEC forged wheel is now available for the INEOS GRENADIER. Building on the TE37X off-road heritage, the M-SPEC variant features a simplified finish without rim line machining while maintaining the series’ renowned strength and RAYS’ patented A.M.T technology.
Press Release: VOLK RACING TE37XT M-SPEC size addition for the INEOS GRENADIER!
The TE37 Everything
This TE37 series wheel name is composed of X” and “T” those means inherited design of TE37X which is the masterpiece of off-road forged wheels and the initiation to which indicates a new evolution to acceptance of the overseas truck culture.
Its performance which even can be installed to trucks, passes JWL-T, VIA and our original strength test easily.
In addition, RAYS patented technology A.M.T which is title of VOLK RACING is adopted on 2 parts of the outer rim.
With the standard model TE37XT which made its debut this summer, the M-SPEC makes its mark with a simplified version.

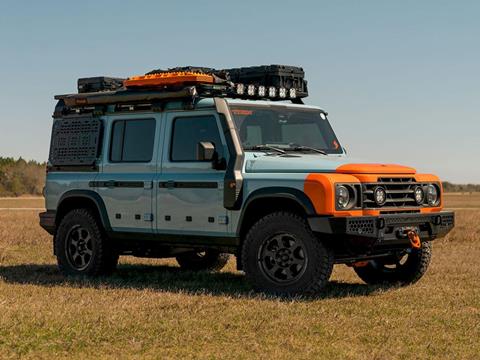

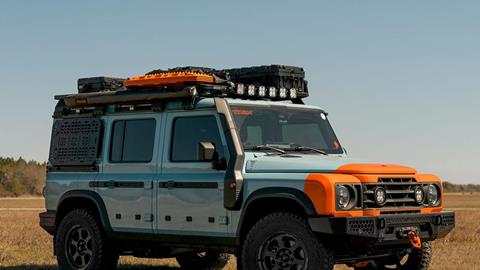

Rim line machining has been removed for a more subtle and simple finish, while maintaining logo machining features on the wheel itself. Now available for the Ineos Grenadier!
Air valve is included; optional center caps are not available for this fitment. Optional colors are available to order.
|
SIZE |
RIM |
INSET |
HOLE |
P.C.D. |
HUB |
DRILL |
COLOR |
PRICE |
CALIPER |
LOAD |
LOAD |
CODE |
|
16x8.5J |
L |
-20 |
6 |
139.7 |
112 |
29-15 |
BC |
\88,500 |
955 |
2,400 |
06306858016BC |
|
|
16x8.5J |
L |
-20 |
6 |
139.7 |
112 |
29-15 |
BR |
\92,500 |
955 |
2,400 |
06306858016BR |
|
|
17x8.5J |
L |
16 |
5 |
127 |
71.6 |
29-15 |
BR |
\103,000 |
730 |
1,609 |
06307851689BR |
|
|
17x8.5J |
LL |
-3 |
6 |
135 |
108.8 |
29-15 |
BC |
\99,000 |
955 |
2,600 |
0630785A317BC |
|
|
17x8.5J |
LL |
-3 |
6 |
135 |
108.8 |
29-15 |
BR |
\103,000 |
955 |
2,600 |
0630785A317BR |
|
|
17x8.5J |
LL |
-15 |
6 |
135 |
108.8 |
29-15 |
BC |
\99,000 |
955 |
2,600 |
06307857517BC |
|
|
17x8.5J |
LL |
-15 |
6 |
135 |
108.8 |
29-15 |
BR |
\103,000 |
955 |
2,600 |
06307857517BR |
|
|
17x8.5J |
LL |
-10 |
6 |
139.7 |
112 |
29-15 |
BC |
\105,500 |
955 |
2,600 |
06307857016BC |
|
|
17x8.5J |
LL |
-10 |
6 |
139.7 |
112 |
29-15 |
BR |
\109,500 |
955 |
2,600 |
06307857016BR |
|
|
18x8J |
SS |
38 |
6 |
130 |
86.9 |
29-15 |
BC |
\99,000 |
INEOS GRENADIER |
955 |
2,600 |
06308803851BC |
|
18x8J |
SS |
38 |
6 |
130 |
86.9 |
29-15 |
BR |
\103,000 |
INEOS GRENADIER |
955 |
2,600 |
06308803851BR |
|
18x9J |
L |
0 |
6 |
139.7 |
112 |
29-15 |
BC |
\115,500 |
955 |
2,600 |
06308900016BC |
|
|
18x9J |
L |
0 |
6 |
139.7 |
112 |
29-15 |
BR |
\119,500 |
955 |
2,600 |
06308900016BR |
Center Cap
※Not available for 5-127, 6-130, and 6-135 fitments.
For more information, check out our official web site: www.rayswheels.co.jp and always contact your RAYS Authorized Dealer!
