Factory brakes weren’t designed for 9,000-pound adventure vans. Wilwood Engineering’s AERO-DM Direct Mount Brake Kits address a critical safety concern for the 2022–2024 Sprinter 2500 AWD owners with larger rotors, multi-piston calipers, and improved thermal capacity—delivering the stopping power and control fully equipped builds require.
Why Sprinter 2500 AWD Vans Need Upgraded Brakes
The modern camper van has evolved well beyond its commercial roots. Platforms like the Mercedes Benz Sprinter 2500 now serve as the foundation for fully built-out adventure rigs, often carrying significant weight in the form of cabinetry, water systems, gear, and passengers.
That transformation has highlighted a limitation many owners eventually encounter: the factory braking system was never designed with these heavier, fully loaded configurations in mind. Recognizing that gap, Wilwood developed its AERO-DM Direct Mount Brake Kits as a comprehensive Sprinter brake upgrade specifically for the 2022–2024 Mercedes Benz Sprinter 2500 AWD.
Released in mid-2025, the system addresses braking performance, thermal management, and overall control for vans that operate near or at their gross vehicle weight rating.
Wilwood AERO-DM System Overview
To understand the need for upgraded brakes, it helps to look at the numbers. A platform like the OWL-upfitted Tiffin GH1—built on the Sprinter 2500 AWD chassis—carries a GVWR of 9,050 pounds, with a dry weight already approaching 7,700 pounds before passengers, water, and gear are added.
That margin closes quickly in real-world use. Add a full water tank, recovery gear, camping equipment, and possibly a trailer, and the braking system is asked to manage significantly more mass than stock conditions account for.
The result can be longer stopping distances, increased brake fade on descents, and reduced confidence in high-speed or emergency braking situations.

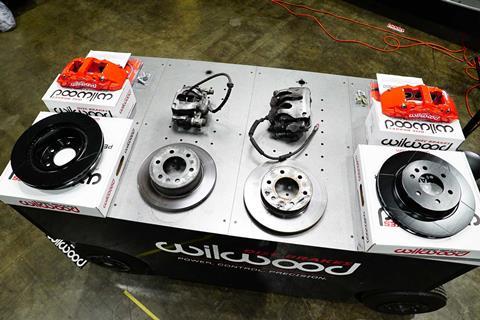

Wilwood’s AERO-DM kits are designed as a complete system upgrade rather than a partial fix. Instead of focusing solely on rotor size or pad compound, the kit integrates larger rotors, multi-piston calipers, and matched performance pads to address the entire braking equation.
AERO-DM Brake Kit: Front and Rear, Working Together
The system consists of two primary components: the AERO6-DM front kit and the AERO4-DM rear kit. Each plays a distinct role in balancing braking performance across the vehicle.

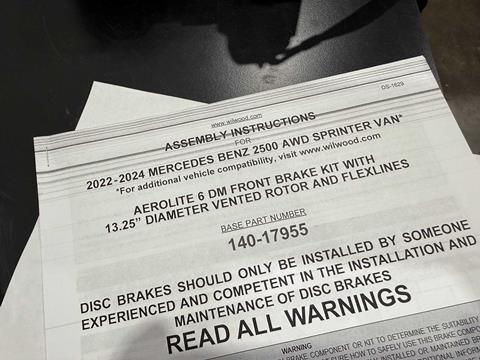

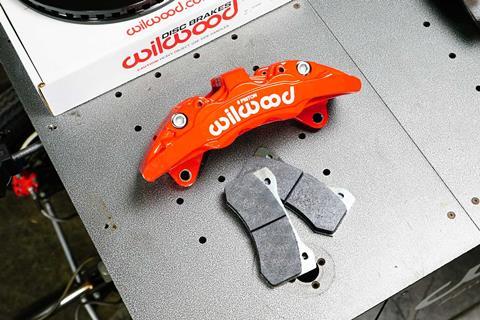

Up front, the AERO6-DM kit uses forged aluminum six-piston calipers paired with 13.25-inch vented rotors. These rotors are constructed from a long-grain carbon iron alloy designed to handle sustained heat loads without sacrificing structural integrity. The increase in rotor diameter improves mechanical leverage, allowing the brakes to generate more stopping torque with less effort.

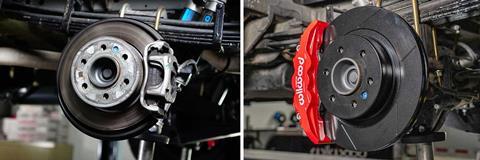

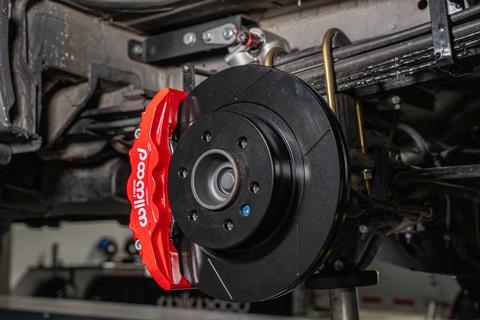

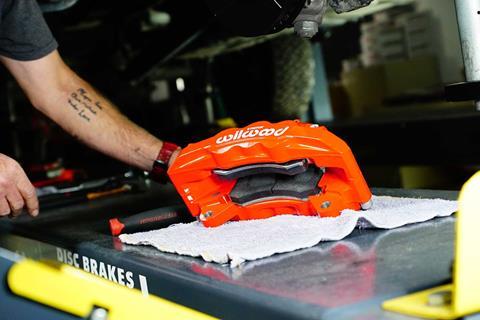

Out back, the AERO4-DM kit introduces four-piston calipers with similarly sized 13.25-inch rotors. While rear brakes traditionally play a secondary role in many vehicles, the added weight of a fully built van shifts the dynamics.
By increasing rear braking capacity, the system distributes braking forces more evenly, reducing forward pitch and improving stability under deceleration.
In practice, this balance becomes especially noticeable during trail braking or long downhill descents, where maintaining composure is just as important as outright stopping power.

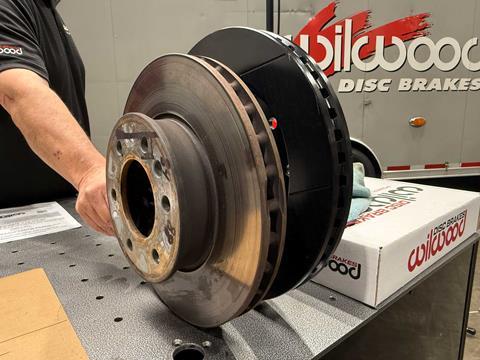

How Larger Rotors Combat Brake Fade
Brake fade is one of the most common concerns in heavily loaded vehicles, and it stems directly from heat buildup. When rotors and pads exceed their optimal temperature range, friction drops off, resulting in reduced braking effectiveness.
Larger rotors address this issue in two ways. First, they provide more surface area to dissipate heat. Second, their increased mass allows them to absorb more thermal energy before temperatures climb to critical levels.
Combined with performance-oriented brake pads, the AERO-DM system is engineered to maintain consistent braking performance even under sustained load, such as descending mountain passes or navigating stop-and-go traffic with a full build.
These gains are particularly relevant for overland and camper van applications, where terrain and weight often combine to create demanding conditions.
Installation and Compatibility

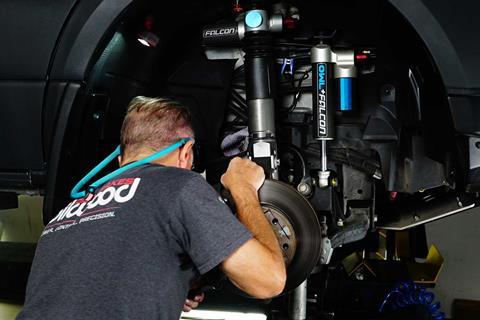

One of the key aspects of the AERO-DM kits is their direct-mount design. Unlike some aftermarket brake systems that require extensive modification, Wilwood engineered these kits to integrate with factory mounting points, master cylinders, and electronic systems.
That compatibility simplifies installation and preserves factory functionality, including ABS and onboard braking controls. For builders and owners, this approach reduces the complexity typically associated with major brake upgrades.

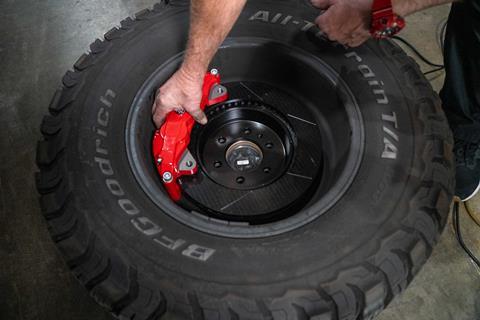

Wheel clearance remains a consideration. The larger rotor and caliper package generally requires 17-inch or larger wheels, which aligns with many aftermarket wheel setups already common in the Sprinter community.
Weight Trade-Offs
Any discussion of braking upgrades inevitably touches on unsprung weight. Larger rotors do add mass, particularly at the rear, where the Wilwood rotors are heavier than stock. However, this increase is offset in part by the use of lightweight forged aluminum calipers and pad assemblies.
The net result is a modest change in unsprung weight, one that is generally considered acceptable given the improvements in braking performance and safety. For vehicles operating near their GVWR—or towing additional loads—the benefits in control and stopping consistency outweigh the minor weight penalty.

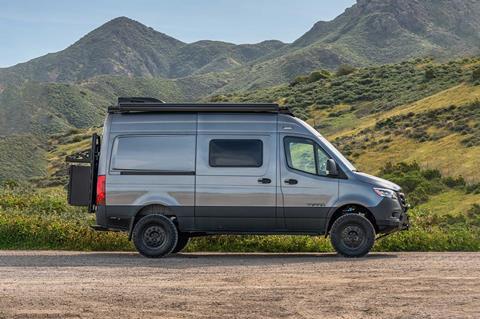

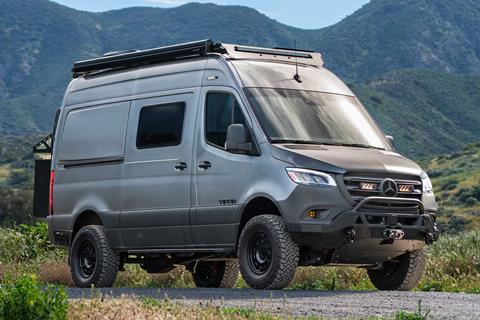

Performance Testing on the OWL Vans Tiffin GH1

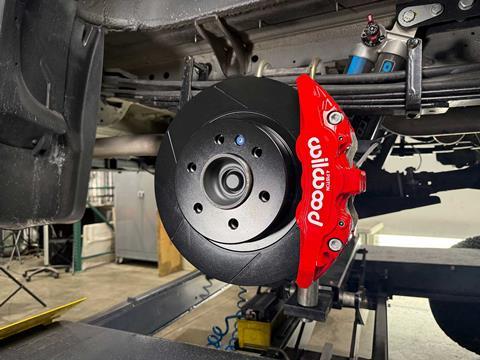

The AERO-DM system was tested on an OWL Vans–upfitted Tiffin GH1, providing a practical example of how the upgrade performs in a fully built environment. With added mass from interior systems and gear, the van presented a realistic use case for the kind of braking demands many owners encounter.
Feedback from installation and testing highlighted several key improvements. Increased front clamping force provided stronger initial bite, while the upgraded rear system helped stabilize the vehicle during braking transitions.
Together, the front and rear kits contributed to a more controlled, predictable braking feel. The process of bedding in the new rotors and pads—an essential step for any performance brake system—also underscored the importance of proper setup.
Gradual heat cycling allows the pad material to transfer evenly onto the rotor surface, ensuring consistent friction and maximizing the system’s effectiveness over time.
A Safety-Focused Upgrade
For many Sprinter owners, brake upgrades are less about performance in the traditional sense and more about safety and confidence. The ability to manage a weight-laden van on steep grades, in traffic, or during emergency maneuvers is critical, especially when traveling far from support.
The AERO-DM kits align with that mindset. By increasing thermal capacity, improving braking balance, and delivering more consistent performance under load, the system addresses one of the most important aspects of vehicle control.
Who Should Upgrade Their Sprinter Brakes
Not every Sprinter will require a full big brake kit. For lightly loaded vans or those used primarily for urban driving, the factory system may be sufficient. However, for vehicles that regularly carry significant weight, tow trailers, or venture into mountainous terrain, the limitations of the stock brakes become more apparent.
In those scenarios, a complete Sprinter 2500 AWD brake upgrade like the AERO-DM kit offers a targeted solution. Rather than incremental gains from pads or fluid alone, it provides a comprehensive upgrade designed to match the demands of modern van builds.
Final Thoughts
As the Sprinter platform continues to evolve into a multi-purpose adventure vehicle, supporting systems like overland brake systems need to keep pace. The Wilwood AERO-DM Direct Mount Brake Kits represent a response to that shift, focusing on the realities of added weight and extended use.
For builders and owners pushing their vans beyond stock configurations, braking performance is no longer a secondary consideration. It becomes part of the foundation—one that determines how confidently the vehicle can handle everything from highway speeds to steep descents off the beaten path.
For more information on the Wilwood AERO-DM brake kits for Sprinter 2500 AWD, visit Wilwood’s Sprinter brake kit page or call (805) 388-1188 to speak with a brake specialist about your specific build.
Specs for Mercedes Sprinter 2500 AWD Wilwood AERO-DM Kit
| Front: | AERO6-DM six-piston calipers, 13.25” vented rotors. |
| Rear: | AERO4-DM four-piston calipers, 13.25” vented rotors. |
| Compatibility: | 2022–2024 Mercedes-Benz Sprinter 2500 AWD. |
| Wheel Requirement: | 17” minimum diameter. |
| Installation: | Direct bolt-on, factory mounting points. |
| Material: | Forged aluminum calipers, long-grain carbon iron rotors.` |
FAQ
What is the Wilwood AERO-DM brake kit?
The Wilwood AERO-DM is a direct-mount big brake kit featuring larger rotors and multi-piston calipers for improved stopping power and heat management.
Why do Mercedes-Benz Sprinter 2500 AWD vans need upgraded brakes?
Fully built camper vans can approach or exceed 9,000 pounds, which pushes factory brakes beyond their intended limits—leading to longer stopping distances and brake fade.
What improvements does the AERO-DM kit provide?
The system increases braking torque, improves thermal capacity, and delivers more consistent stopping performance under heavy loads and demanding conditions.
What’s included in the Sprinter 2500 AWD AERO-DM system?
The kit includes front six-piston calipers with 13.25-inch rotors and rear four-piston calipers with matching rotors, along with performance brake pads.
Does the AERO-DM kit reduce brake fade?
Yes, larger rotors and improved materials help dissipate heat more effectively, reducing brake fade during long descents or heavy use.
Can I install the AERO-DM kit myself?

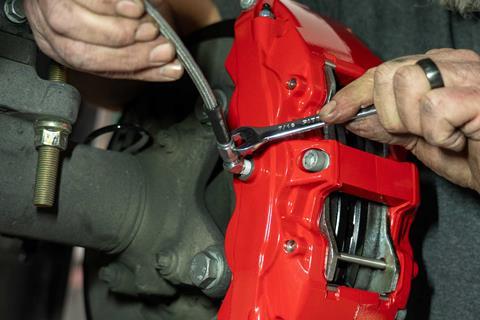

While the kit is designed for direct bolt-on installation, professional installation is recommended to ensure proper setup, bedding procedures, and brake system bleeding.
Will the AERO-DM kit fit stock wheels?
In most cases, no. The larger rotors and calipers typically require 17-inch or larger wheels for proper clearance.
Who should upgrade to the Sprinter 2500 AWD AERO-DM kit?
It’s ideal for heavily built camper vans, overland rigs, or vehicles that frequently tow or operate in mountainous terrain.
Is the AERO-DM kit worth it?
For drivers carrying significant weight or pushing their vans beyond stock use, the upgrade improves safety, control, and overall driving confidence.
