For three years we focused on exterior upgrades for our 2021 Ford Bronco Non-Sasquatch Outer Banks, but a proper Bronco drawer storage system remained an afterthought. We made do with an assortment of plastic bins that shifted with every corner, forcing us to play real-life Tetris every time we packed for a trip. It worked—barely—but it was far from ideal.
We finally reached the point where we needed a proper Bronco drawer storage system that could keep up with how we actually use the vehicle. Enter Solid Wood Worx with their pre-cut Baltic Birch plywood drawer storage solution designed specifically for the 4-door Ford Bronco. Here’s what we learned after 100 days of real-world testing.

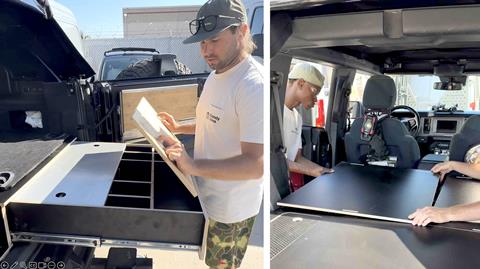

Ford Bronco Drawer Storage System for the Bronco. This image shows the optional Bamboo + Aluminum covers, and the sleeping platform.
Rear Cargo Storage Solution for a 2021 Ford Bronco (4-Door, Non-Sasquatch)

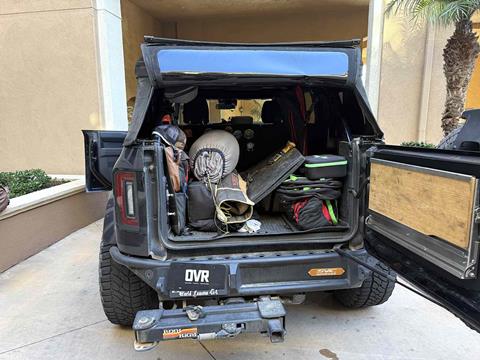

For much of this build, our focus has been on the exterior of our 2021 Ford Bronco Outer Banks, (read about our complete Bronco build journey). Like many long-term projects, interior functionality—specifically rear cargo storage—lagged behind. Day-to-day gear was handled with plastic bins and loose cases, turning every trip into a game of Tetris.
Eventually, that approach stopped making sense. Between daily use, event travel, and family camping, the Bronco needed a purpose-built cargo solution that was secure and flexible enough to adapt as the vehicle’s role changed.
How We Use Our Bronco: Daily Driver to Overland Adventure Rig
The OVR Bronco is not a garage queen. It operates as a true multi‑role vehicle throughout the year. It regularly appears as a display vehicle at Overland Expo (See our Overland Expo coverage) events, supports SCORE International off‑road races such as the Baja 1000 and San Felipe 250 (Read about our Bronco suspension upgrades for off-road performance), and serves as a family camping rig for weekend and overnight trips.
Between events, it still needs to function as a daily hauler for tools, supplies, and general gear. This demanding use case required a cargo management solution that could transition easily between roles. For any Bronco owner who overlands, camps, or uses their vehicle for both recreation and work, a versatile drawer storage system is an essential need versus an option.
Evaluating Bronco Cargo Storage Solutions
Although there are many cargo systems on the market, few are designed with the realities of a 4‑door Bronco in mind. We were evaluating cargo organizers that balanced daily practicality with true off‑road durability, while remaining visually cohesive with the Bronco interior.
Storage capacity mattered, but not at the expense of noise control or structural rigidity. Expandability was important, as was the ability to transition into a sleeping platform without permanently eliminating one or both rear seats. The system needed to evolve with the vehicle, not limit it.
Bronco Drawer Storage System Comparison
We evaluated Bronco-specific drawer cargo storage solutions from FORD, Goose Gear, ARB and Solid Wood Worx to find the best modular cargo system for our needs. Here’s how the leading 4-door Bronco drawer systems compare.
| Feature | Ford OEM Drawer | Solid Wood Worx | Goose Gear | ARB |
| Fitment | 4-door Bronco specific | 4-door Bronco specific | 4-door Bronco specific | Universal w/ Bronco kit |
| Drawer Count | 1 | 1 | 1 or 2 | 1 |
| Lockable | ✅ | Optional | Optional | ✅ |
| Sleeping Platform Option | ❌ | ✅ | ✅ | ❌ |
| Modularity / Expandability | Low | Medium | High | Medium |
| Materials | Steel frame + carpet | Baltic Birch Plywood | CNC Baltic Birch | Steel + Marine Plywood |
| Approx. Installed Weight | ~90 lbs | ~130 lbs (w/ Sleeping) | ~80–140 lbs (dependent) | ~106 lbs |
| Cargo Height Loss | Low | Medium | Medium | Medium–High |
| Noise / Rattle Control | Very good (OEM) | Very good | Excellent | Good |
| Installation Ease | Bolt-in, Easy | Moderate DIY | Moderate DIY | Moderate |
| Typical Price (USD) | ~$789 | $1,495–$2,100+ | $1,600–$2,500+ | $1,400–$2,000+ |
Solid Wood Worx Bronco Storage System: 100-Day Field Test
After extensive research, we selected the Solid Wood Worx storage system. At the time of writing, it has been installed and in regular use for more than 100 days.

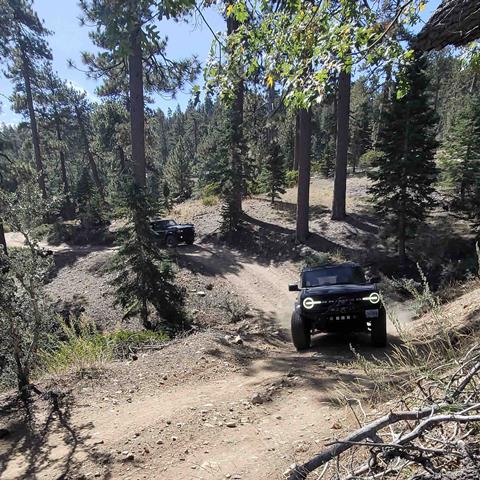

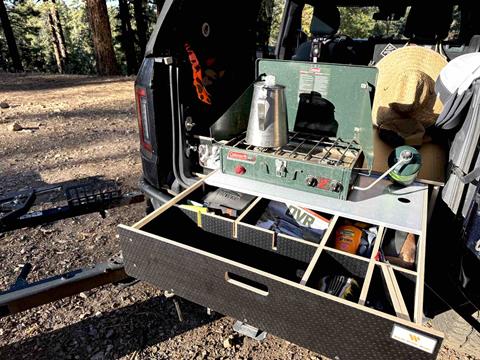

The first meaningful test came quickly. Fully loaded, the Bronco was taken to Southern California’s Big Bear trail system. The route included slow, off‑camber articulation, uneven rock gardens, and stretches of high‑speed washboard. This real-world off-road storage test validated the system’s design across the demanding terrain Bronco owners will face.
Throughout the drive, we paid close attention for creaks, fastener movement, or any audible signs of stress. There Were None.
The system remained quiet and stable, even as the vehicle twisted and cycled through its suspension travel. That absence of noise became one of the most telling indicators of the system’s overall design quality.
Baltic Birch Construction and Design Features
The Solid Wood Worx drawer system is CNC‑cut from Baltic birch plywood, a material chosen for its strength, dimensional stability, and favorable weight characteristics compared to steel-based alternatives. Rather than relying on sheer mass for rigidity, the design emphasizes structural efficiency. This Baltic birch drawer system delivers strength without the penalty of steel-based cargo organizers.

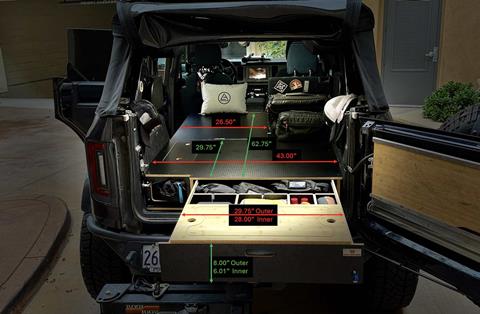

For dimensions, the drawer system plus the side cubby is 29.75” front to back x 43” wide x 8” tall and the inner dimensions for the drawer system is 27.50” front to back x 28” wide x 6.10” tall. The optional 60:40 sleeping platform is 26.50” wide x 33” long and 16.50” wide x 33” long.

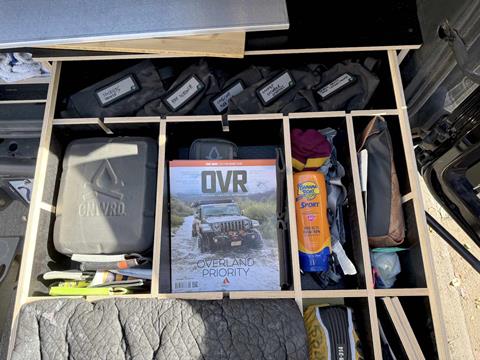

The signature hexagonal cut out pattern is not only decorative—it reduces unnecessary material, manages weight, and helps distribute load while maintaining stiffness across the platform and drawer faces. This modular storage system is finished in a durable black textured protective coating intended to resist moisture, humidity, and surface wear.
In real‑world use, the coating appears to serve a secondary purpose as well. By creating a slight barrier between adjoining surfaces, it dampens vibration and eliminates wood‑on‑wood contact, which likely contributes to the absence of squeaks or rattles during off‑road driving.
The result is a system that feels composed and deliberate, even when the chassis is working hard.
Areas for Improvement

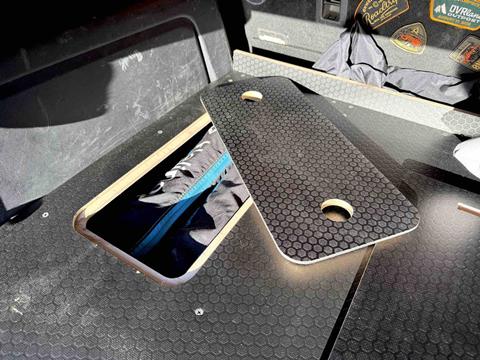

Whether you’re building an overland Bronco or need a better truck camping storage, this system provides the foundation. As solid as the system is overall, there are a few areas where refinement would improve the experience. The side access panel that allows entry to the factory cubby space is convenient, but becomes a weak point when driving over rough terrain and can rattle if left unsecured.
Additionally, the optional sleeping platforms do not include integrated on-board storage when removed, which means they must be stored externally when not in use. Neither issue detracts significantly from the system’s performance, but both represent opportunities for future design updates.

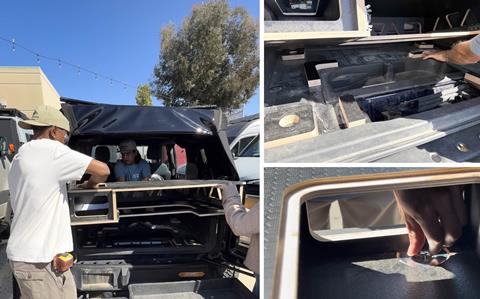

Installing Bronco Drawer Storage

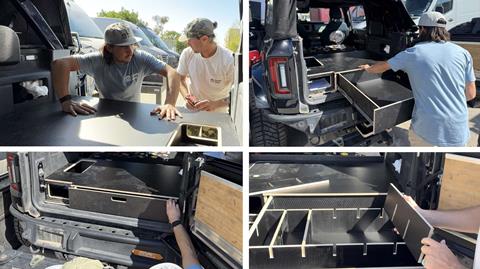

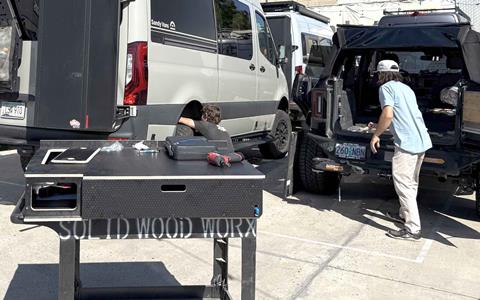

Installation falls squarely in the medium‑difficulty range for any IKEA DIY’er. While it can be completed at home with basic tools and patience, we chose professional installation so we could visit the Solid Wood Worx facility and meet the team behind the product.
Price-As-Tested: $2,144.00
| Bronco 4-Door Single Drawer Storage Pre-Cut Kit | $1,495.00 |
| Bed Extension 60:40 Split | $140.00 |
| Bamboo Cutting Board | $125.00 |
| Aluminum Cover | $109.00 |
| Separators- 2 Small, 2 Medium, 2 Large | $75.00 |
| Installation | $200.00 |
| TOTAL | $2,144.00 |
Is the Solid Wood Worx Bronco Drawer Storage System Worth It?
In the end, the Solid Wood Worx Bronco drawer storage system has brought order to what was previously organized chaos. It carries our daily essentials without compromise, remains quiet and composed across a wide range of terrain, and integrates cleanly into the Bronco’s cargo area.
Most importantly, this modular storage solution easily adapts to the way we actually use the vehicle—from everyday hauling to multi-day overland expeditions and family camping. If you’re serious about Bronco cargo organization and off-road capability, a purpose-built drawer system isn’t optional, it’s essential for any overland rig.
For our 2021 4‑door Bronco, it’s a practical, well‑engineered upgrade that, in hindsight, should have been installed much sooner.
FAQ: Ford Bronco Drawer Storage System
After three months of testing and displaying this Bronco drawer organizer across mountain roads, shows and daily commutes, here are the most common questions we encountered.
What drawer storage systems fit a 2021 4-door Ford Bronco?
Drawer storage systems designed for the 2021 4-door Ford Bronco include vehicle-specific options from Solid Wood Worx and Ford, along with universal systems like ARB when paired with a Bronco installation kit.
What is the best drawer storage system for a 4-door Ford Bronco?
The best Bronco drawer storage system depends on use case. For owners who camp, travel off-road, or attend events, vehicle-specific drawer systems like Solid Wood Worx or Ford provide superior fitment, noise control, and interior integration compared to universal cargo organizers.
How much weight does a Bronco drawer storage system add?
Most Bronco drawer storage systems add approximately 80 to 140 pounds, depending on materials and configuration. This weight should be factored into overall payload planning.
Are drawer storage systems quiet off-road?
High-quality drawer storage systems are designed to remain quiet off-road. Proper fitment, tight tolerances, and vibration-dampening materials help prevent rattles and squeaks on rough terrain.
Can you sleep in a 4-door Ford Bronco with a drawer storage system?
Yes, many Bronco drawer storage systems support optional sleeping platform tops that create a flat surface when rear seats are folded. The Solid Wood Worx system includes a 60:40 split platform option, allowing one or both rear seats to remain functional while providing a Bronco camping setup for overnight adventures.
Are Bronco drawer storage systems removable?
Most aftermarket Bronco drawer storage systems are bolt-in and removable, using factory mounting points without permanent vehicle modification.
What materials are used in drawer storage systems?
Common materials include Baltic birch plywood (used by Solid Wood Worx), marine-grade plywood, and steel frame components. Baltic birch offers superior strength-to-weight ratio compared to steel alternatives. Protective coatings are applied to improve durability and resist moisture in off-road and overland storage applications.
Does a drawer storage system reduce Ford Bronco payload?
Yes, installing a drawer storage system reduces available payload by the system’s weight. Most setups still allow adequate payload for camping and overland use when managed properly.
Are drawer storage systems worth it for a Ford Bronco?
For Bronco owners who regularly carry gear or travel off-road, quality drawer storage systems are essential for adventure vehicle builds. They improve organization, secure cargo during articulation, and transform day-to-day usability for both overland travel and daily driving.
About Solid Wood Worx
Solid Wood Worx was founded by Brian Daigneault, who began designing and building custom vehicle storage systems in 2017 before formally establishing the company in 2023.
The U.S.-made brand specializes in vehicle-specific drawer and platform systems—most notably for the Ford Bronco—using CNC-cut Baltic birch, hex-pattern weight reduction, and durable protective coatings designed for real-world off-road and overland use.
